marca: Ferritas
| Unidades de venda: | Piece/Pieces |
|---|---|
| Baixar: |
|

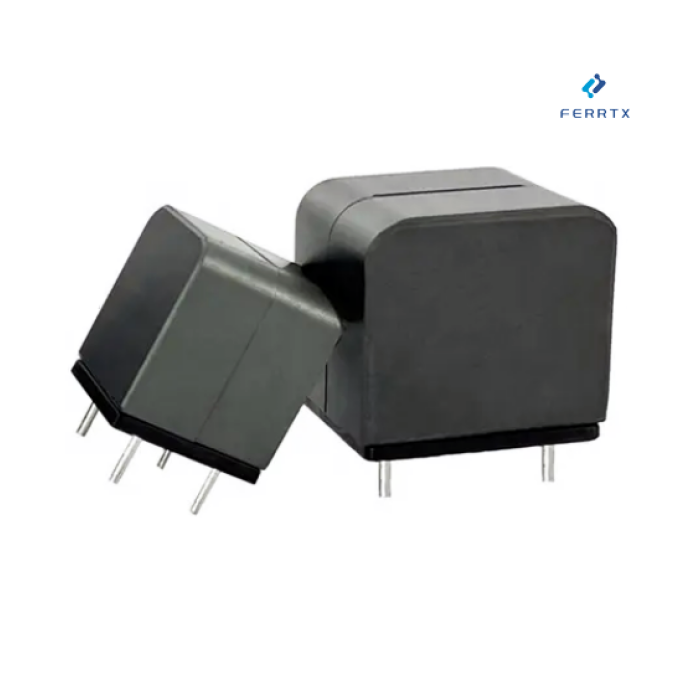

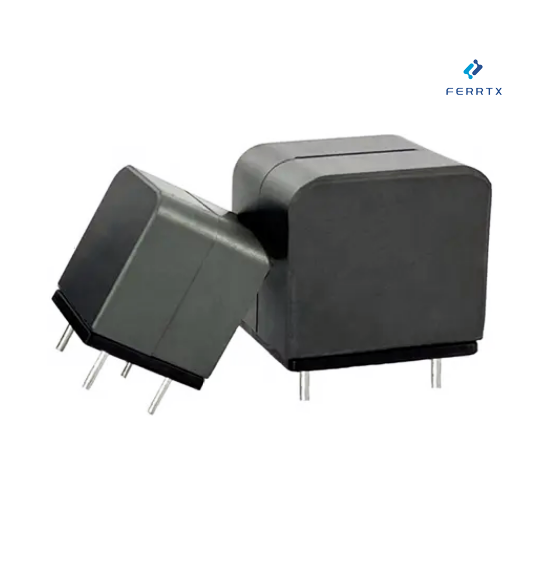

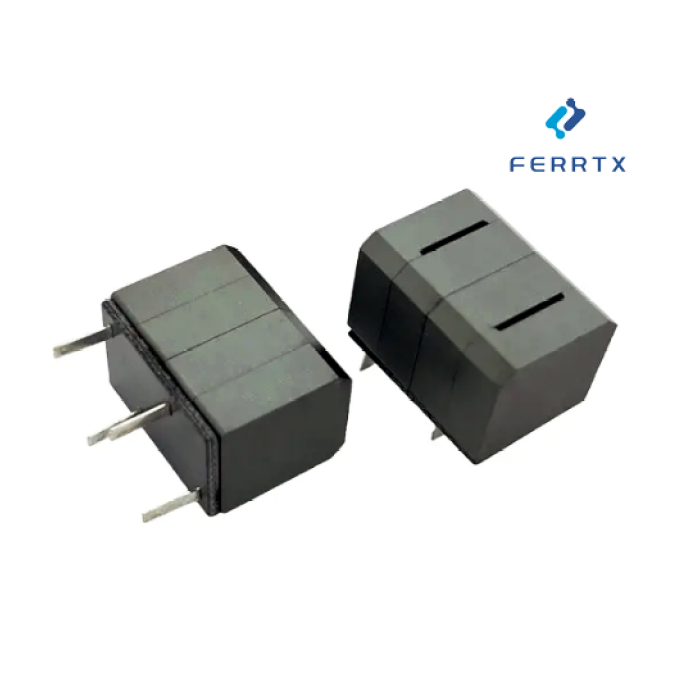

Indutor de energia para amplificador digital
CARACTERÍSTICAS:
· Baixo ruído de radiação por construção magneticamente blindada
· Corrente super alta e baixa resistência
· O design ideal realiza som de alta qualidade e baixa distorção
· Temperatura de operação: -40 ℃ a +130 ℃ (inclua temp. Rise 40 ℃)
· Temperatura de armazenamento: -25 ℃ a +85 ℃
· Todos os produtos são compatíveis com ROHS
Aplicações:
· Adequado como estrangulamento para amplificador digital. TV de áudio de carro, LCD e PDP, home theater 5.1ch, etc.
Série nesta família
| Product Series | Inductance(µH)±20% | DCR Max(mΩ) | Isat Max(A) | Irms Max(A) | D(mm) |
| HDA1010 | 10-15 | 18-23 | 4.3-7.5 | 4.0-5.5 | 0.4-1.2 |
| HDA1010AG | 10-33 | 20.5 | 2.0-7.5 | 4.5 | 0.6 |
| HDA1315B | 10-33 | 5.6-16 | 3.8-7.0 | 5.5-8.5 | 0.33-0.5 |
| HDA1315E | 10-33 | 10-12 | 3.5-11.0 | 7.0-7.5 | - |
| HDA1416A | 10-33 | 15-28 | 5.5-11.5 | 5.0-7.0 | 0.65-0.8 |
| HDA1416B | 10-47 | 6.5-20 | 6.0-9.0 | 5.0-8.0 | 1.8 |
| HDA1416C | 10-27 | 12-20 | 9.0-15.0 | 5.0-7.0 | 1.8 |
| HDA1416D | 10-33 | 15-28 | 5.5-11.5 | 5.0-7.0 | 0.65-0.8 |
| HDA1516 | 10-33 | 11-22 | 5.5-11.0 | 4.5-7.0 | 0.6-0.8 |
| HDA1521A | 10-33 | 11-33 | 8.5-14.0 | 5.0-7.7 | 0.7-0.9 |
| DHA1719 | 10-47 | 7.0-34 | 8.0-22.0 | 5.0-12.0 | - |
| HDA1931A | 10-33 | 4.0-8.2 | 25.0-50.0 | 10.0-18.0 | - |
| HDA2023A | 10-33 | 8.0 | 12-36 | 10-12 | - |
| HDA2023B | 10-33 | 8.3-12.0 | 11.0-31.5 | 8.0-9.1 | 1.1-1.2 |
| HDA3718H | 10-33 | - | - | - | 1.8-2.4 |
| HDAS0910 | 10-22 | 22-52 | 3.2-5.0 | 2.5-3.9 | - |
| HDAS1010 | 10-22 | 18-38 | 4.3-7.1 | 3.5-4.2 | - |
